CI/CD Pipelines: Make Releases Elegant and Efficiently

Table of contents

The adoption and integration of CI/CD methodology in the application development process is a powerful tool that allows achieving high quality of each code commit and the final product as a whole, also allows to reduce the overall development time, increase communication between different teams involved in the project and much more.

The latest “Puppet state of DevOps” report demonstrates its effectiveness in several ways, including a 5-fold decrease in failure rate, 440-fold acceleration in the commit-deployment phase, and a 46-fold increase in deployment rate. The report also found that when developing applications using CI/CD, teams could spend 44% more time writing code for new features instead of digging into processes and customizing tools. This article will tell what the main features of the CI/CD pipeline are and all about its benefits. After reading it, you will understand why more and more companies worldwide use this release automation approach.

Before we move on to the benefits of this methodology, let’s answer the question, “What is CI/CD?” to ensure we are on the same page.

In simple words, CI/CD (Continuous Integration, Continuous Delivery) is an approach/methodology to the software product development cycle. This set of principles and practices aim to automate the testing and delivery of new modules of the developed project to all stakeholders (developers, analysts, quality engineers, and even end-users). The CI/CD workflow is based on the principle of regularly deploying small code portions that make minor changes to the overall structure is much more efficient and profitable for the entire project, rather than assembling all the changes into a massive batch, deploying at one time.

Let’s take a look at the advantages of the continuous delivery pipeline compared to the traditional method.

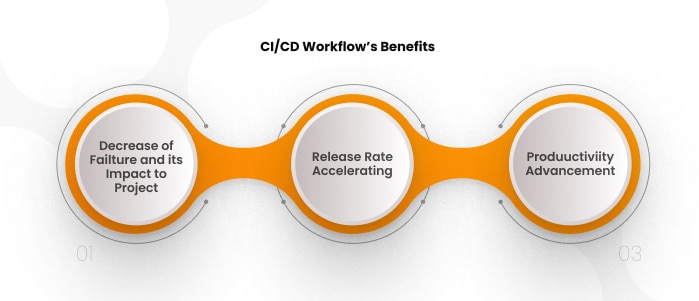

СI/CD Workflow’s Benefits

1. Decrease of failure and its impact to project

As already mentioned, CI/CD is based on integrating small batches of code but with high frequency. In doing so, each piece of code is tested as soon as it enters the repository. This allows errors and bugs to be detected and corrections immediately, preventing a snowball effect. This eliminates the possibility of a critical error that would break the entire application and require you to rewrite a whole branch of code from scratch. It, in turn, causes delays in project delivery, financial and reputational losses as a result. In today’s developer environment, when remote working is a common thing, and the whole team is scattered all around the globe, the use of CI/CD workflow becomes more and more relevant and demanded.

2. Release rate accelerating

The next advantage logically follows from the previous one. The quicker errors and bugs are fixed, the faster the project moves to the release stage. It is mandatory to constantly write new code, an integral part of the CI/CD pipeline. In other words, the development team gradually integrates new code. It iteratively builds up the body of the system, preparing it for release. This approach allows businesses to be more flexible to changing market conditions. Suppose you realize that you need to integrate a new feature urgently to be competitive. In that case, you can frictionlessly shift the team’s focus, and the previous development will not remain a dead weight either.

3. Productivity advancement

With a fast bug and error identification and troubleshooting process, product specialists can spend most of their time writing and deploying new code and quality products as a result. They don’t need to search for a solution to a critical bug that appeared months ago and disrupts operability. In this way, CI/CD workflow allows developers to integrate new code into the main branch continually. That code is of high quality and tested by the QA team. They fix any bug at the root, preventing them from sprawling all over the application as a whole.

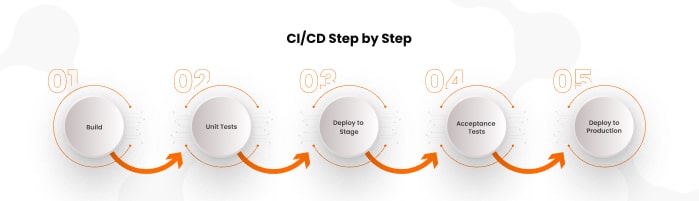

CI/CD step by step

Continuous integration (CI)

CI is the primary, basic software creation process. All code-level changes are brought into a single central repository, merged into the main branch. After each merge (which takes place several times a day) in the modified system, there is an automatic build (often the application is packaged in Docker) and testing (checking of specific code modules, UI, performance, API reliability). In this way, developers are insured against too late detection of problems.

Continuous delivery (CD)

CD is the next level after CI. A new version is created and tested with every code change registered in the repository. Also, developers can quickly launch it with a single click of the deploy button. However, the deployment is still run manually. This method allows you to release changes in small batches which can easily be changed or eliminated when needed.

Continuous deployment (CD)

Once the release is automated, one manual step is left: approving and running the deployment in production. The practice of continuous deployment eliminates that, too, without requiring direct approval from the developer. All changes are deployed automatically.

Using continuous deployment, your team will stop seeing release day as the beginning of the apocalypse.  In addition, developers see the results of their work in action right away, which motivates them to do their tasks better and faster. Continuous deployment also offers some additional benefits:

  • With the fast pace of the development process, since every change is transmitted automatically, a release has a negative impact on the development process. It does not take developers away from creating code.
  • Because changes are made in small batches, fixing them does not entail a significant crew effort.
  • The cherry on the cake is that continuous deployment increases the experience of using the product. They can see the improvements being made literally in front of their eyes.

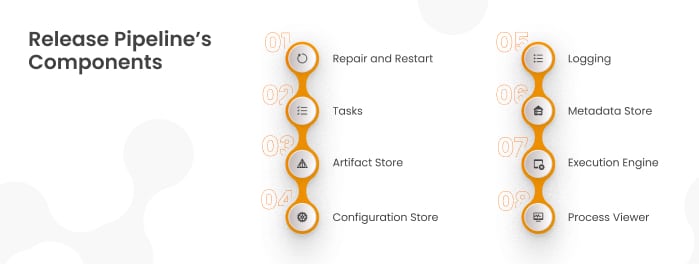

Release pipelines

In essence, a release pipeline is a transfer of written code to production. A traditional release pipeline consists of several steps that follow one after the other. In exceptional cases, highly complex pipelines, some of the stages may be carried out in parallel. So, what components are included here:

1. Repair and restart

The main task is to fix problems that have occurred and to restart tasks that have failed. Moreover, this is an optional phase, and not all conveyors support repair and restart, so use this reasonably.

2. Tasks

Tasks are lists of activities and tasks that need to be completed for a successful release. Note that tasks can be performed in any order. The main thing is to complete them. Look at stages as a tool for flow management and tasks as processes to be completed.

The following tasks are for completion:

Providing infrastructure

This includes various tasks, from creating new virtual environments for testing to setting up and optimally configuring the test environment. In addition, this can also have the integration and launching of additional services, such as a web server.

Deploying applications

At this stage additional changes in the configuration of the environment can be made, if necessary. Deployment of packaged software on this infrastructure is then performed.

Testing

Testing and fixing the results. It is essential to note which stages were successful and which were failed during testing activities.

Shutting down the infrastructure

Once the testing phase is completed, any virtual infrastructure can be shut down or even wholly decommissioned to save money.

3. Artifact store

To ensure fast and problem-free software deployment at every stage, from code modifications to the deployed application, developers must have continuous access to all digital artifacts of the project. Such a repository is the artifact store.

In addition, the artifact repository must be configured to support different versions of the artifacts. The artifact set for a single build and release must be atomic and separate from the artifacts of other releases to prevent cross-contamination.

4. Configuration store

The configuration repository contains values that are the same for all the assemblies (connection strings, API URLs, etc.) in contrast to the artifact repository, which includes different data specific to each build and release individually.

An essential aspect of the configuration repository and the CI/CD pipeline, in general, is security and encryption because inside it, the production configurations are stored, no matter that they can be just machine names.

5. Logging

Sooner or later, malfunctions occur in a pipeline that requires the intervention of experts. To identify the root of the problem, engineers need to examine the logs to understand the issues and what went wrong. The better organized the system and the structure of these logs, the less time it will take to isolate the problem.

Each element of the log should have the minimum necessary description:

  • Release Conveyor/Application
  • Conveyor stage
  • Assembly number
  • Timestamp

6. Metadata store

The metadata repository is one of the most straightforward features of the whole CI.CD approach. This repository contains name/value sets specific to the assembly data. Typically environment variables, but the metadata repository can also collect information about completed tasks and pipeline stages.

7. Execution engine

The release conveyor also includes a component that is responsible directly for executing the conveyor itself. There are many workflow mechanisms, and how this works under the hood is up to the solution. One standard option that you can use is the bash script.

8. Process viewer

Another option is the graphical representation of your CI/CD pipeline. That way, you can see what processes are going on in the entire workflow. In terms of code, this is the smallest part, but in terms of functionality and manageability, the UI importance is hard to overestimate

How to automate releases

Every year CI/CD workflow develops and becomes more and more popular and in demand. The number of benefits it brings is constantly increasing. More and more developers leverage automation release options and consistent integration and deployment workflow – the product is always ready for release, the twin reactions to errors in the code thanks to atomized testing, the list goes on.

To harness the automated release process, you should follow these steps:

  1. Build tests for the critical codebase element.
  2. Use CI software to automatically run the tests as soon as batches of code are integrated into the main branch.
  3. Remember that your engineers should contribute their changes recurrently (daily preferable).
  4. Resolve any issues with the build as soon as they are detected.
  5. Each new story requires new test measures.
  6. Utilize automated rolling deployment tools to activate the code in the new environment. Continuous deployment pipelines allow for undoing the failed deployments.
  7. Use CD pipelines for monitoring and notifying to obtain full-sided control over the process.

Summary

CI/CD is the solution you should look at short to get the most out of your work. Let your developers solve exciting problems and conquer the heights instead of routinely writing code, finding bugs, and fixing them.

IT Delight experts are always here to consult you about establishing an automation strategy and providing you with total CI/CD implementation support.

Contact us to automate releases in your company or to get any e-commerce implementation services.
